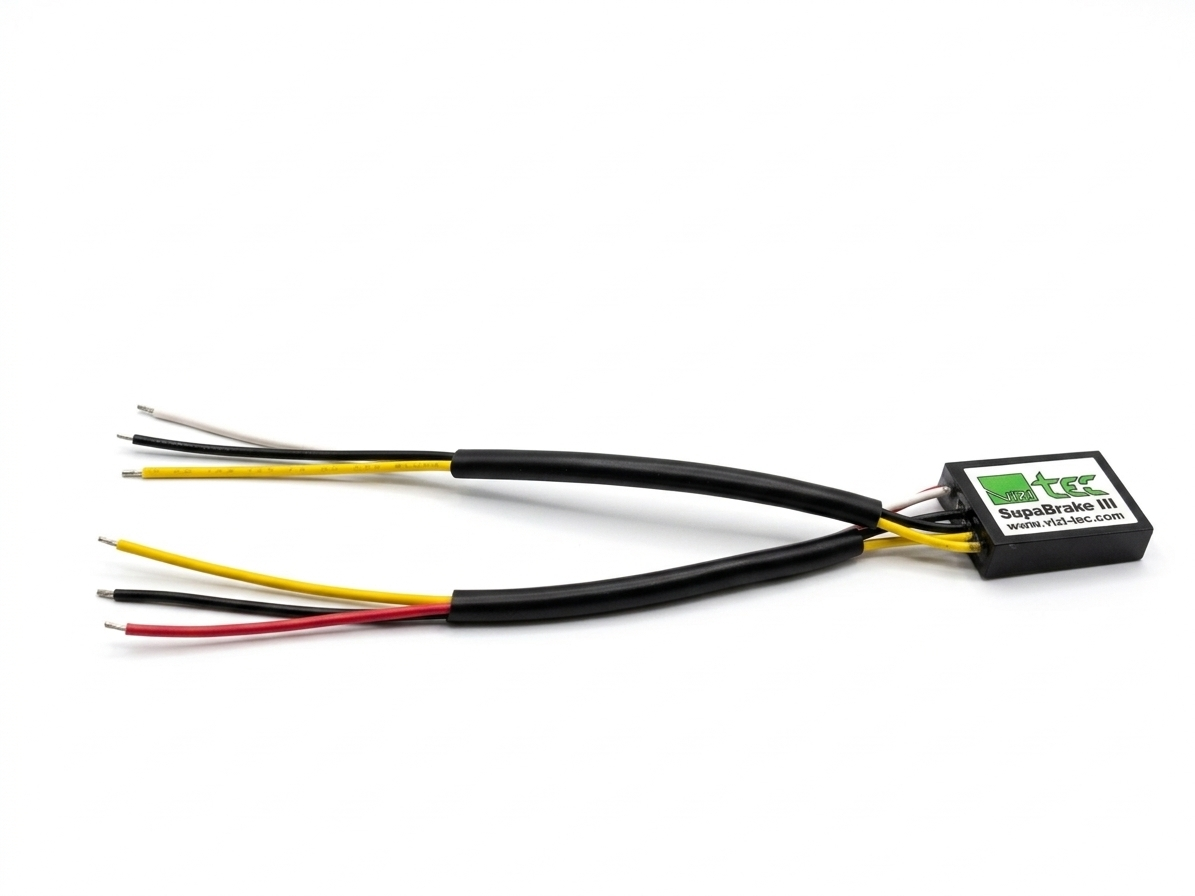

UNIVERSAL (Bare Wires) - Brake Light Modulator
Experience the ultimate motorcycle modulator! Fully customizable algorithm. This kit does not come with OEM connectors. Wire your own.
If you require an additional switched 12V, Ground, and a copy of the modulated brake wire to drive some extra LEDs or to power a phone charger, you can easily include a Spare Harness for these future modifications.
The SupaBrake-3 brake light modulator enhances the reaction time of vehicles behind you by varying the brake light flashing pattern based on your braking frequency and intervals. Less at lower speeds stop go traffic (when brakes are frequently used), and more aggressively at higher speeds (when brakes are not used as frequent).
Example at lower speeds: When the frequency at which the rider applies the brakes increases, (i.e. during low speeds such as city driving), the shorter the burst of flashes to the rear brake(s) light will be. If the brakes are applied within 0 – 12 seconds, the brake light will NOT flash – thus allowing it to function normally (solid brake light). This condition is most valuable during heavy stop-and-go traffic so as not to annoy the person or police in the vehicle behind you.
Example at cruising speeds: When the frequency at which the rider applies the brakes decreases, (i.e. at cruising speed), the longer the burst to the rear brake light will be. This condition is most valuable during quick sudden deceleration at speeds which require quick reaction to changes in traffic conditions or other driver’s intentions. It has been scientifically proven that a quick flashing of a vehicle’s brakes will alert the driver behind much sooner … and the SupaBrake Flasher does this for you.
Wire Colors Installation
Yellow = 12V Switched Power Input
Red = Input Brake Signal (raw)
White = Output Brake (modulated)
Black = GroundCANBUS Compatible
Smart Algorithm
Our advanced algorithm features variable modulation to ensure your brake light adapts to whatever traffic conditions; Be it in heavy stop or constant flow traffic. Unlike cheaper alternatives, it won't constantly irritate drivers behind.
User profile select
108,801 field selectable/programmable profiles!
Self-contained profile selection. No need for external hardware/software etc.
On-The-Fly profile review. Allows rider to see the internal algorithm settings. Program once... fire and forget.
Input de-bounce
This feature allows the user to quickly “tap” the brake lever or pedal without the algorithm inducing its flash routine or resetting. In an event of a “tap”, the brake light will function normally and will appear as an ordinary tap of the brakes. Another aspect to this feature is it allows the user to initiate a quick speed check on the rear brakes before a full application of the front brakes.
Force-Flash retriggering
This technology, unique to Vizible Technologies, allows the rider to manually induce a flash routine after the initial application of the brakes. This is useful when stopped alone at a red light or in traffic to alert vehicles approaching from behind. Example: Press and hold the brakes for >3seconds. Quickly release and reapply the brakes within half second. The unit will output a burst of flashes.
Decaying flash routine
Each pulse period is gradually increase from the previous pulse. This gives the burst cycle a “de-acceleration” perception when viewed from behind at speed. In other words, the routine will modulate the tail light rapidly at first then gradually slow down to become steady.
Defeat Mode
This feature allows the rider to quickly bypass all the features of the SupaBrake without having to physically remove the unit. The functionality of the brake light is easily revert to stock condition.Lifetime Warranty! Meets (IEC 529 IP 6.7) standards. 100% encapsulated in epoxy for a solid construction. The ultimate protection against vibration, shock, high temperature and the elements. Virtually indestructible.
Miniature size. Works with all OEM light devices (incandescent, LED or halogen)
Legal in all 50 States. (The running light never modulates. Only the brake light)
Weight 2 oz Dimensions 1.4 × 1.0 × 0.3 in Electrical Specs Input Voltage = 9VDC to 15VDC
Constant load current = 5.3 Amps
Quiescent current = 0.001 Amps
Operating Temperature = -40C to +80C
Storage Temperature = -40C to +95C
Fully compatible with all OEM light devices (bulbs or LEDs) 2 or 3 wire configuration when applicable. And/or third party integrated lights.
CANBus compliantWire Length & gauge 175mm +/-10mm (7 inches +/-0.5) *Exclude connectors
20 AWG or 18 AWG depending on connector usedWire Colors Red = Input brake signal
Yellow = Running light aka “+12V”
Black = Ground
White = Modulated output
All other colors = Turn signals and lic plate lightINSTALLATION: Super easy... just find the connector that interfaces the brake light housing to the harness. Plug the kit in series. It can only plug one way. Can't screw up. Done!
We hault making PDFs for each new make and model. Links below are an overview for a typical installation. Easy peasy lemon squeezy... read one you've read them all. If you need more help, send us an email. We may have pictures of your bike's installation. Word!
My motorcycle is a new model for this year. Can you make me one? Yes absolutely. Please send us an email and we'll work with you to document it at a discount.
What is the extra spare harness and do i need it? This option allows you to add a 'spare' cable for future modifications like a phone charger, radar detector, or extra LED that require switched 12V or modulated brake signals. The cable comes with a waterproof connector terminated at the factory, and you'll receive a loose mating connector for your end. You do not need this option; it provides three wires (switched 12V, modulated brake, ground). If you need a raw brake signal, just leave a note, and we'll add a fourth wire at no extra cost!
Will this kit work with LEDs? Yes!
Is it compatible with CanBUS? 100%
Do you ship via DHL/FedEx/UPS? No we do not. USPS and its affiliate GlobalPost is our goto shipping method for both domestic and international.
How much is it to ship to Canada? We charge a $10 flat rate for all international orders.
What is the lead time? We make these per order. There are too many variations to keep in stock. Typical shipping time is 1-5 days depending on model and options ordered.
