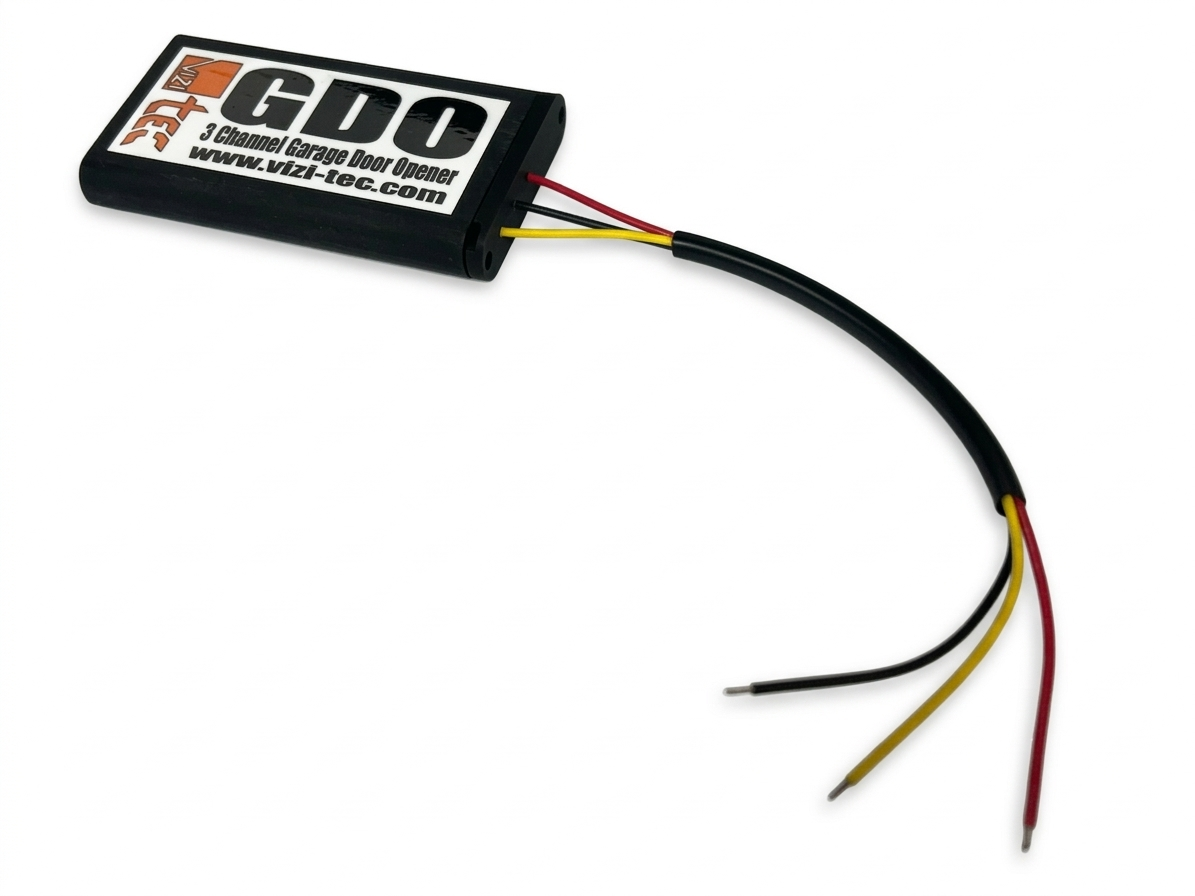

UNIVERSAL (Bare Wires) - Garage Door Opener
Elevate your ride by toggling your garage door/gate with just a few taps of brakes. Compatible with major North American openers.
This kit does not come with OEM connectors. Wire your own.
Please verify your opener is compatible before ordering. See page 8 of the User Manual for the full programming list.
Open and close your gate/garage door. No removing your gloves to get in your pocket for that fob, no fumbling around in compartments, no getting off your bike, just the smooth squeeze of the brake lever and voila, your garage/gate opens just like magic. Your bike buddies will be in awe!
Wire Colors Installation
Yellow = 12V Switched Power Input
Red = Input Brake Signal or Manual Button(Active High 12V)
Black = GroundCANBUS Compatible
Lifetime Warranty!
Miniature size. (if applicatable) (w/optional SB3). Works with all OEM light devices (incandescent, LED or halogen)
Legal in all 50 States. (if applicatable) (w/optional SB3) (The running light never modulates. Only the brake light)
Weight 3 oz Dimensions 3.4 × 1.9 × 0.48 in Electrical Specs Input Voltage = 9VDC to 15VDC
Constant load current = 5.3 Amps(if applicatable (w/SB3))
Quiescent current = 0.001 Amps
Operating Temperature = -40C to +80C
Storage Temperature = -40C to +95C
Fully compatible with all OEM light devices (bulbs or LEDs) 2 or 3 wire configuration when applicable. And/or third party integrated lights.
CANBus compliantWire Length & gauge 175mm +/-10mm (7 inches +/-0.5) *Exclude connectors
20 AWG.Wire Colors Red = Input brake signal
Yellow = Running light aka “+12V”
Black = GroundINSTALLATION: This kit you'll need to do your own installation. Three wires for you to splice in. Super easy and basic. Feed it 12V, Ground. Then an active high signal to make the kit do its thing. Done!
We hault making PDFs for each new make and model as the installation is super easy. If you need help, send us an email. We may have pictures of your bike's installation. Word!
<See our Brake Light Modulator product for installation examples>
What is the operating distance? Your typical remote control... 2-4 houses away on average.
What openers are supported? The GDO works with LiftMaster, Chamberlain, Genie, Sears Craftsman, Linear, Moore, Stanley, Wayne Dalton, Overhead Door, Access Master, Do-It, Link Control, Gatheron, Master Mechanic, Raynor, Steel-Craft, and True Value openers that feature a colored smart “learn” button or a legacy DIP switch with 7–12 codes. * Please verify your opener is compatible before ordering. See page 8 of the User Manual for the full programming list.
How many garage doors(openers) can the unit operate? Total of 3 per building. Possibly more if you have another opener at different address(cabin or work) that is of same mfg/model. They can both be operated on same GDO channel.
My motorcycle is a new model for this year. Can you make me one? Yes absolutely. Please send us an email and we'll work with you to document it at a discount.
What is the extra spare harness and do i need it? This option is not offered with the GDO standalone product.
Is it compatible with CanBUS? 100%
How much to ship to the EU? Outside of the US we only ship the GDO to Canada. We charge a $10 flat rate for all international orders. The GDO is currently NOT availble for the EU, AU and Asian market.
Do you ship via DHL/FedEx/UPS? No we do not. USPS and its affiliate GlobalPost is our goto shipping method for both domestic and international.
What is the lead time? We make these per order. There are too many variations to keep in stock. Typical shipping time is 1-5 days depending on model and options ordered.
